INDEXIBLE MILLING & HOLE MAKING



The Hottest New Products in Cutting-Edge Indexable Milling Technology

Trust WIDIA for the highest quality and most reliable indexable milling technology available on the market today. With advanced designs, reduced cutting forces, and unsurpassed performance in all material groups, WIDIA is the leader in high-performance indexable milling solutions.

  • Face Milling M1200
  • Face Milling M1200 Mini
  • High Feed Face Milling M370
  • Shoulder 90⁰ Milling VSM11
  • Shoulder 90⁰ Milling VSM490
  • Copy Mill M200
  • Copy Mill M100
  • Copy Mill M270
  • Top cut Four

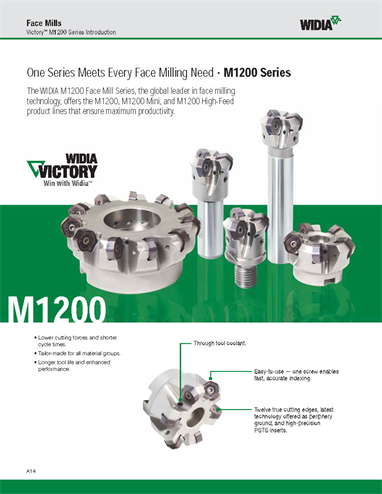

INDEXIBLE MILLING & HOLE MAKING

WIDIA FACE MILLING M1200

  • Lower cutting forces and shorter cycle times.
  • Tailor-made for all material groups.
  • Longer tool life and enhanced performance.

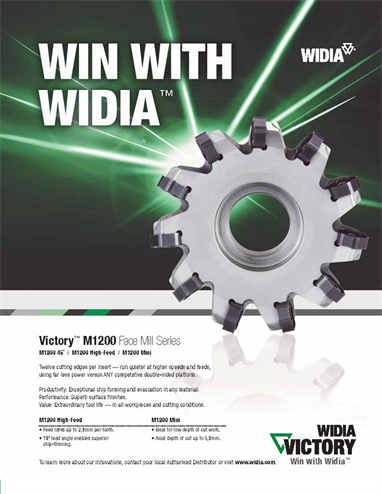

INDEXIBLE MILLING & HOLE MAKING

WIDIA FACE MILLING M1200 MINI

Twelve cutting edges per insert — run quieter at higher speeds and feeds,
using far less power versus ANY competitive double-sided platform.
Productivity: Exceptional chip forming and evacuation in any material.
Performance: Superb surface finishes.
Value: Extraordinary tool life — in all workspieces and cutting conditions.


INDEXIBLE MILLING & HOLE MAKING

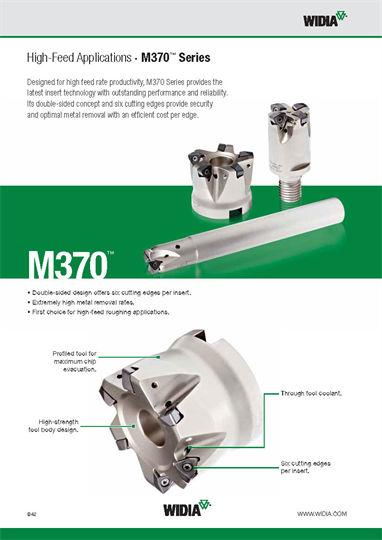

WIDIA FACE MILLING M370

  • Double-sided design offers six cutting edges per insert.
  • Extremely high metal removal rates.
  • First choice for high-feed roughing applications.

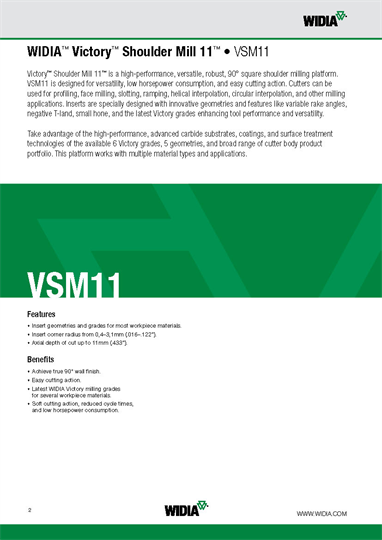

INDEXIBLE MILLING & HOLE MAKING

WIDIA 90 SHOULDER MILLING VSM11

Features

  • Insert geometries and grades for most workpiece materials.
  • Insert corner radius from 0,4–3,1mm (.016–.122").
  • Axial depth of cut up to 11mm (.433").
    Benefits
  • Achieve true 90° wall finish.
  • Easy cutting action.
  • Latest WIDIA Victory milling grades for several workpiece materials.
  • Soft cutting action, reduced cycle times and low horsepower consumption.

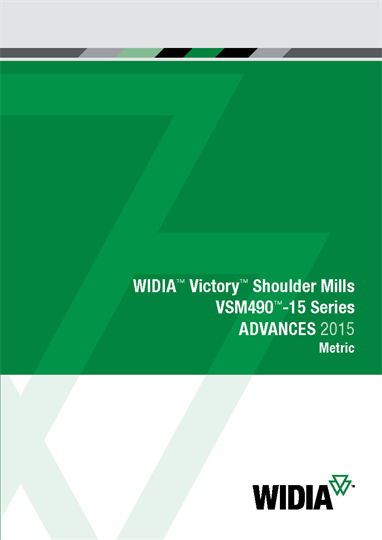

INDEXIBLE MILLING & HOLE MAKING

WIDIA 90 SHOULDER MILLING VSM490

  • Double-sided strong insert with 4 cutting edges.
  • High positive geometry for lower cutting forces.
  • Superior wall and surface finish capabilities.
  • “Stepless” solution when using multiple steps.

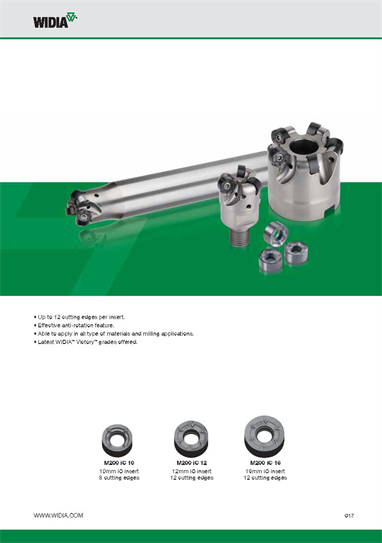

INDEXIBLE MILLING & HOLE MAKING

WIDIA COPY MILLING M200

  • Up to 12 cutting edges per insert.
  • Effective anti-rotation feature.
  • Able to apply in all type of materials and milling applications.
  • Latest WIDIA™ Victory™ grades

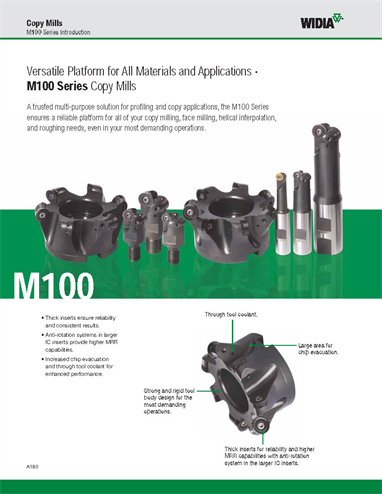

INDEXIBLE MILLING & HOLE MAKING

WIDIA COPY MILLING 100

  • Thick inserts ensure reliability and consistent results.
  • Anti-rotation systems in larger IC inserts provide higher MRR capabilities.
  • Increased chip evacuation and through tool coolant for enhanced performance.

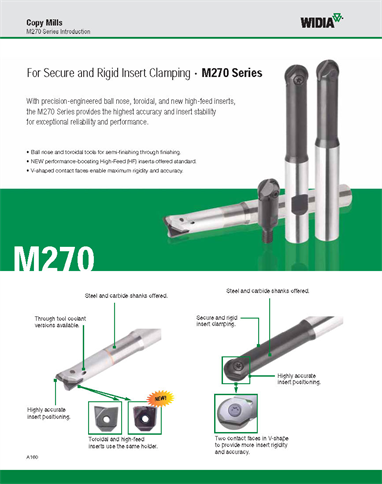

INDEXIBLE MILLING & HOLE MAKING

WIDIA COPY MILLING M270

  • Toroidal and high-feed inserts use the same holder.
  • Highly accurate and reliable insert positioning.
  • For all rough, semi-finish, and finish applications.

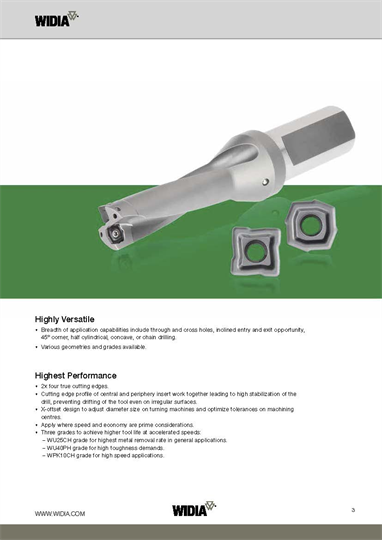

INDEXIBLE MILLING & HOLE MAKING

TOP CUT FOUR

  • Standard diameter range covering 12–68 mm in 2 x D, 3 x D, 4 x D, and 5 x D.
  • Four real cutting edges each for entire platform.
  • Eight insert sizes to cover complete diameter range.
